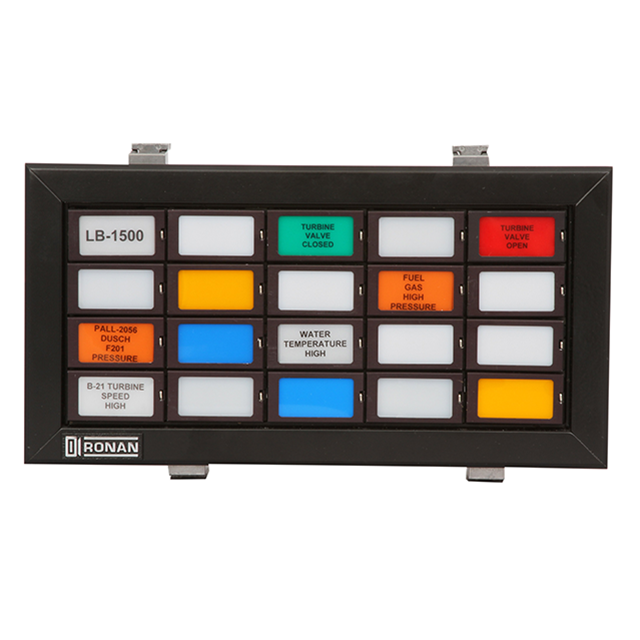

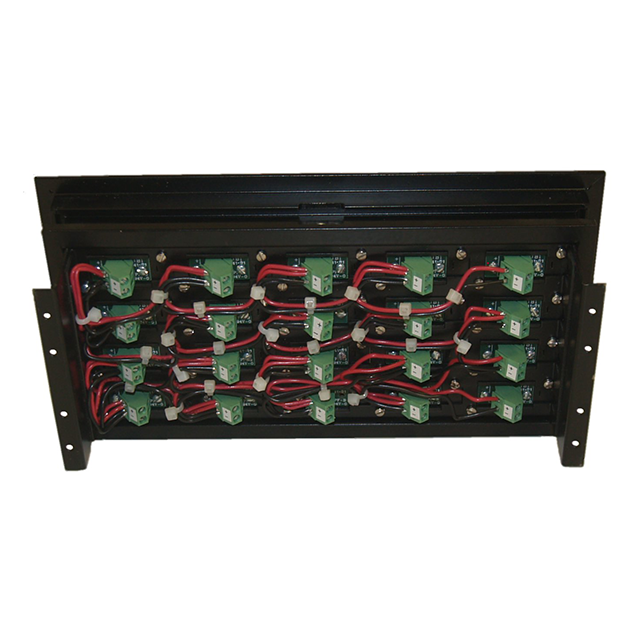

The Series LB-1500 is most suitable for desktop display applications. These aircraft design light panels are factory assembled to customized arrays. Compression-type terminals allow external connection or the LED cabinet may be wired at the factory to multi-pin connectors that interface via multi-conductor cables to the LED driver logic.
